PHYSICAL COLD STORAGE / 16 × 16

STAINLESS-STEEL SEED VAULT256 BITS

Your seed.
Set in steel.

A mechanical, all-steel backup for the entropy behind a 24-word BIP39 wallet. No electronics. No vendor dependency.

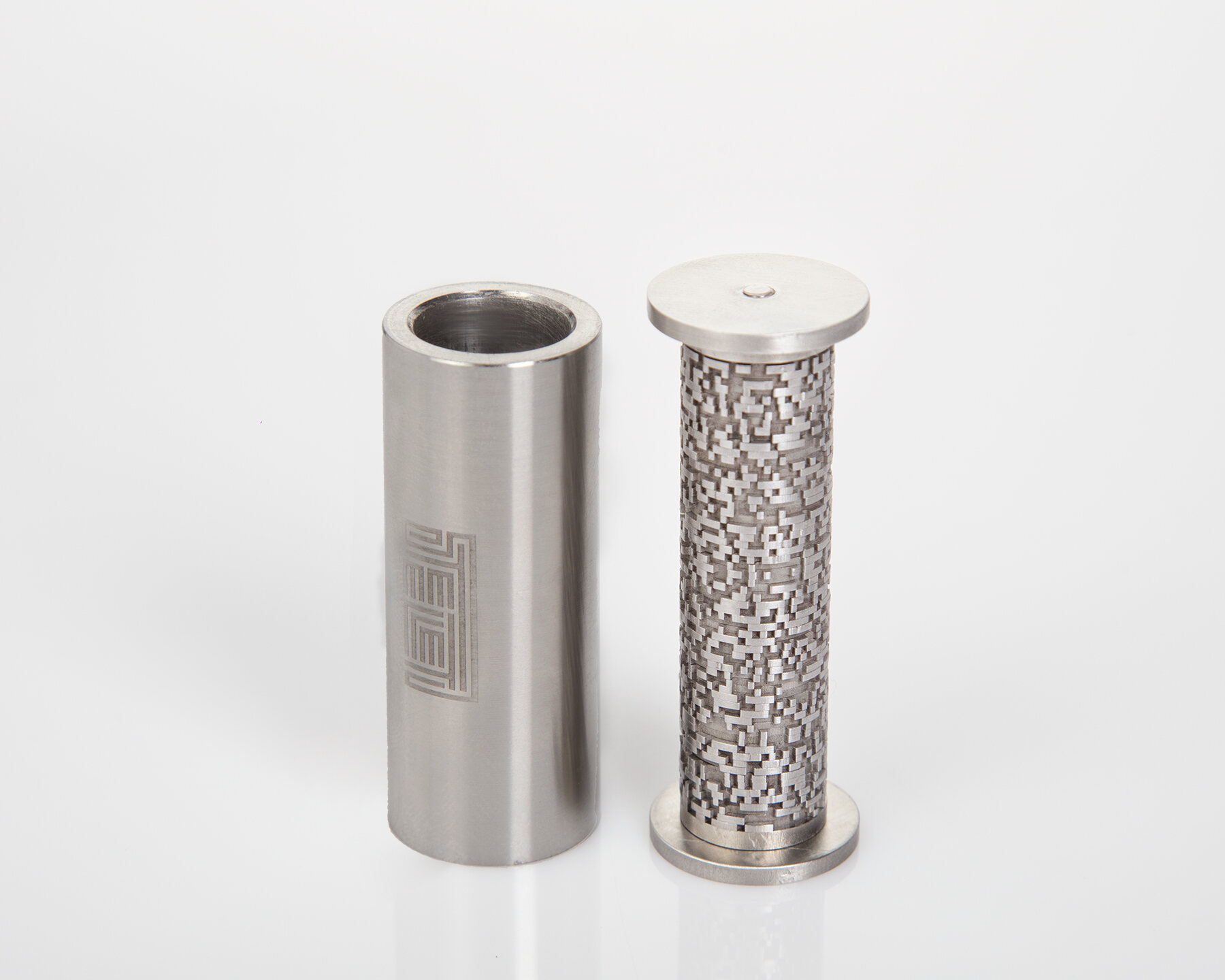

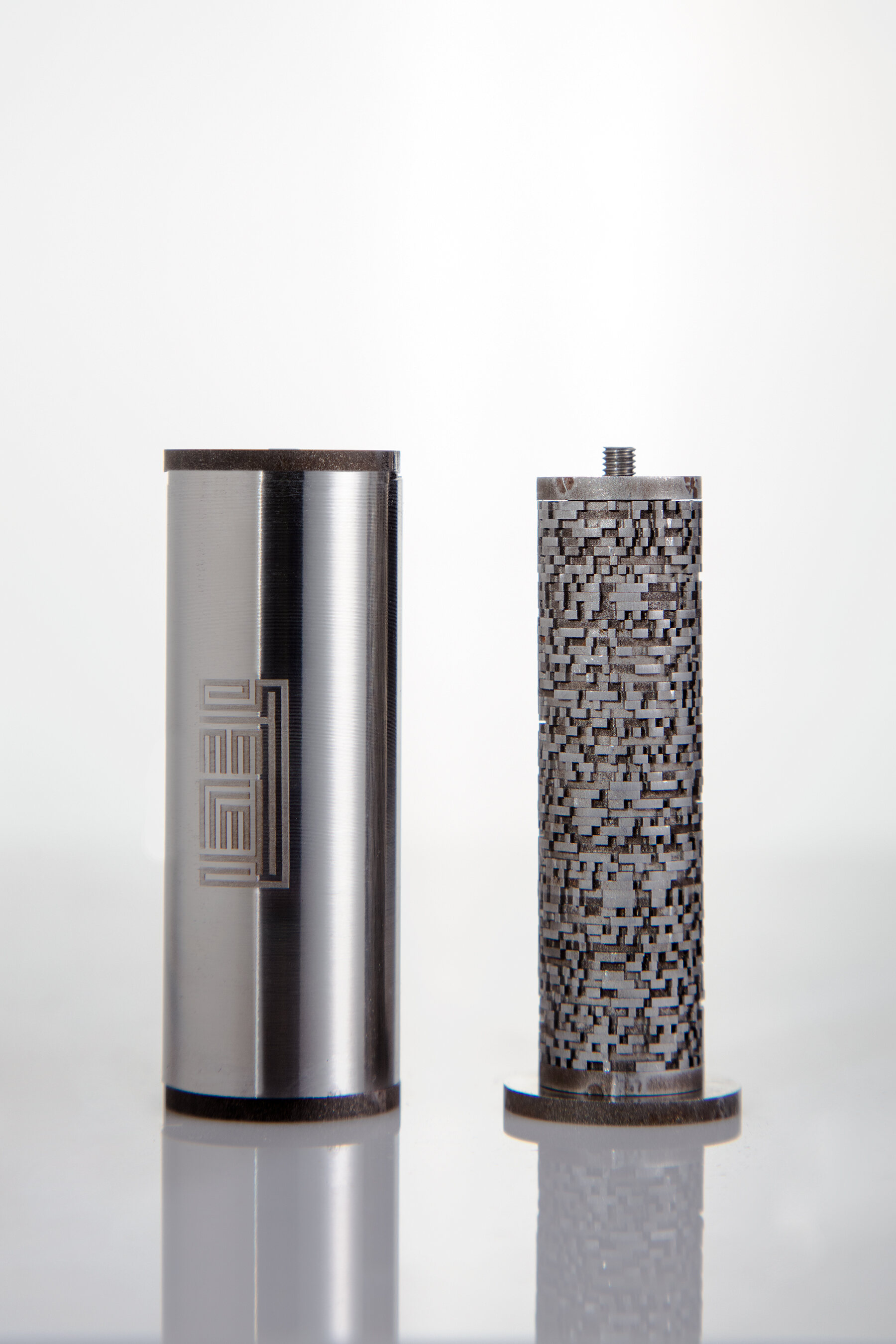

Steellet shell and encoded core
Shell / encoded corePrototype archive
16 layers × 16 positions
256 physical bits
Zero electronics

01 / ARCHITECTURE

One bit at a time.
Visible. Verifiable.

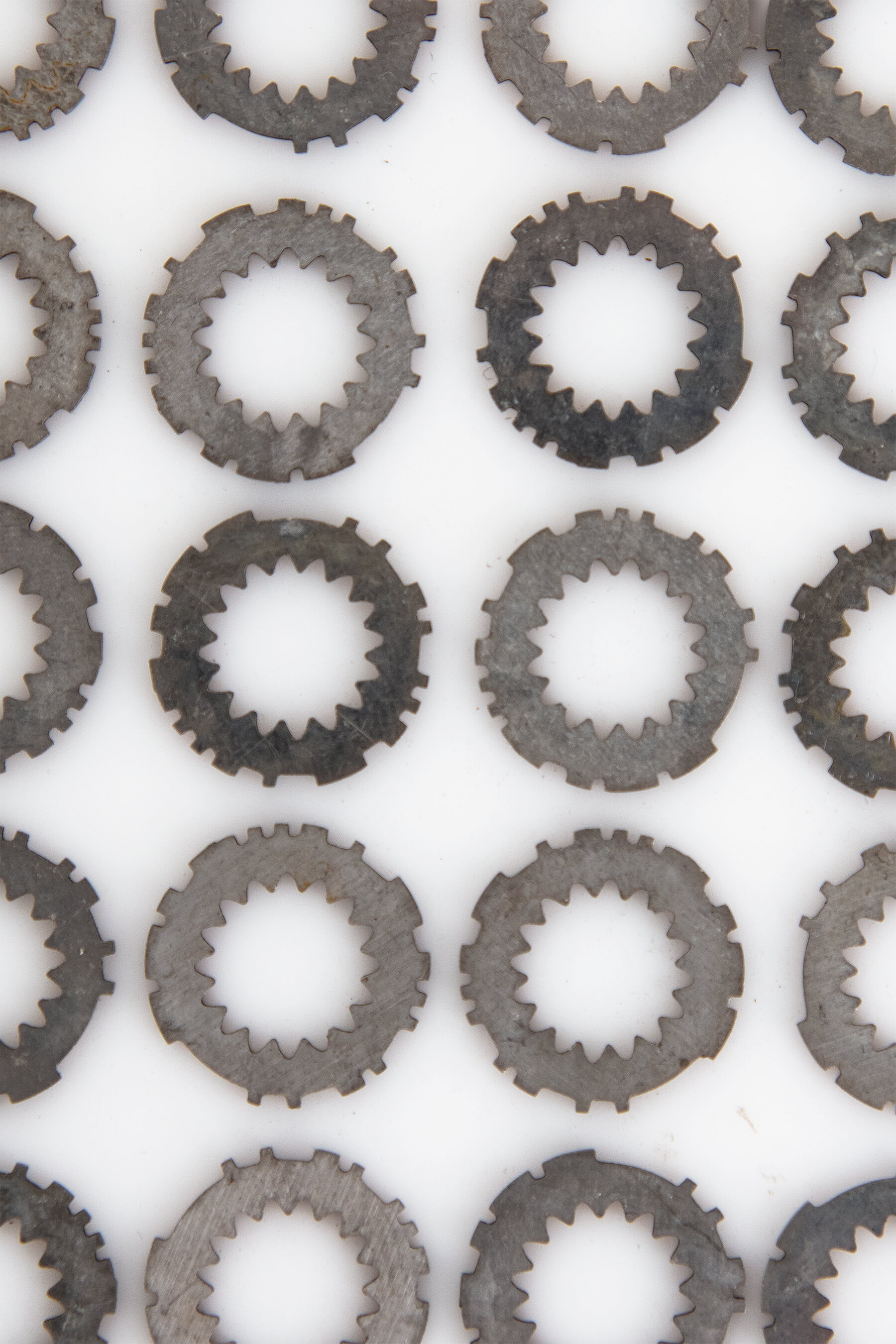

Each of sixteen layers holds sixteen radial positions. Four visual sectors make every row easier to set and read back before the rail locks the selected states.

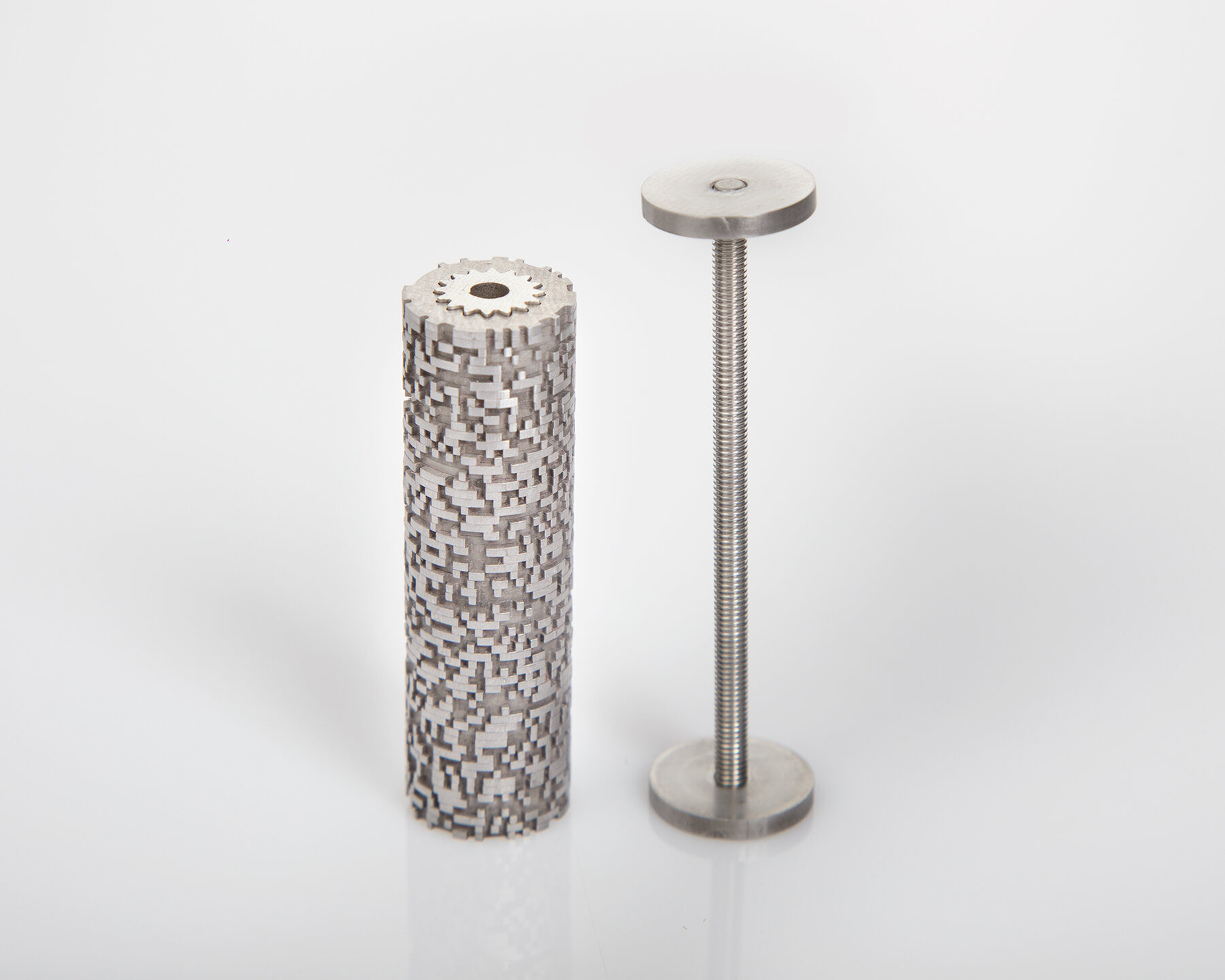

Conceptual exploded view of the current Steellet architectureOuter shell, locking cap, sixteen indexed encoding layers, a sixteen-position indexing star, locking rail, and central shaft.1234567891011121314151601 / OUTER SHELLPhysical protection02 / LOCKING CAPOpen / close access03 / 16 ENCODING LAYERS16 positions per layer04 / INDEX STARFour sectors / 16 positions05 / LOCKING RAIL + SETTABLE TEETHRetains the selected physical states
Concept assembly drawing / current 16×16 architectureGeometry and indexing to be matched to final production drawings
16mechanical layers
16positions per layer
256physical states

The exact zero-mark and viewing orientation remain tied to the final production drawing.

03 / DATA TO STEEL

Words become
physical positions.

The companion tool exposes each conversion step locally, then turns 256-bit entropy into sixteen clear assembly rows.

  1. 01

    Validate

    Confirm the BIP39 words and checksum offline.

  2. 02

    Decode

    Recover the exact 256-bit entropy.

  3. 03

    Set

    Map one 16-bit row to each layer.

  4. 04

    Verify

    Read back the full object before locking it.

LOCAL / OFFLINE AFTER FIRST LOAD

Mnemonic, hex, binary, checksum, and the 16 × 16 map.

Open the utility ↗

04 / OPTIONAL IDENTITY

Public QR.
Private seed.

A unique QR can identify each component using public identifiers supplied by the owner. The seed, private keys, and passphrase never go to the manufacturer.

The derivation path and signing protocol will be published before this option is offered for production.

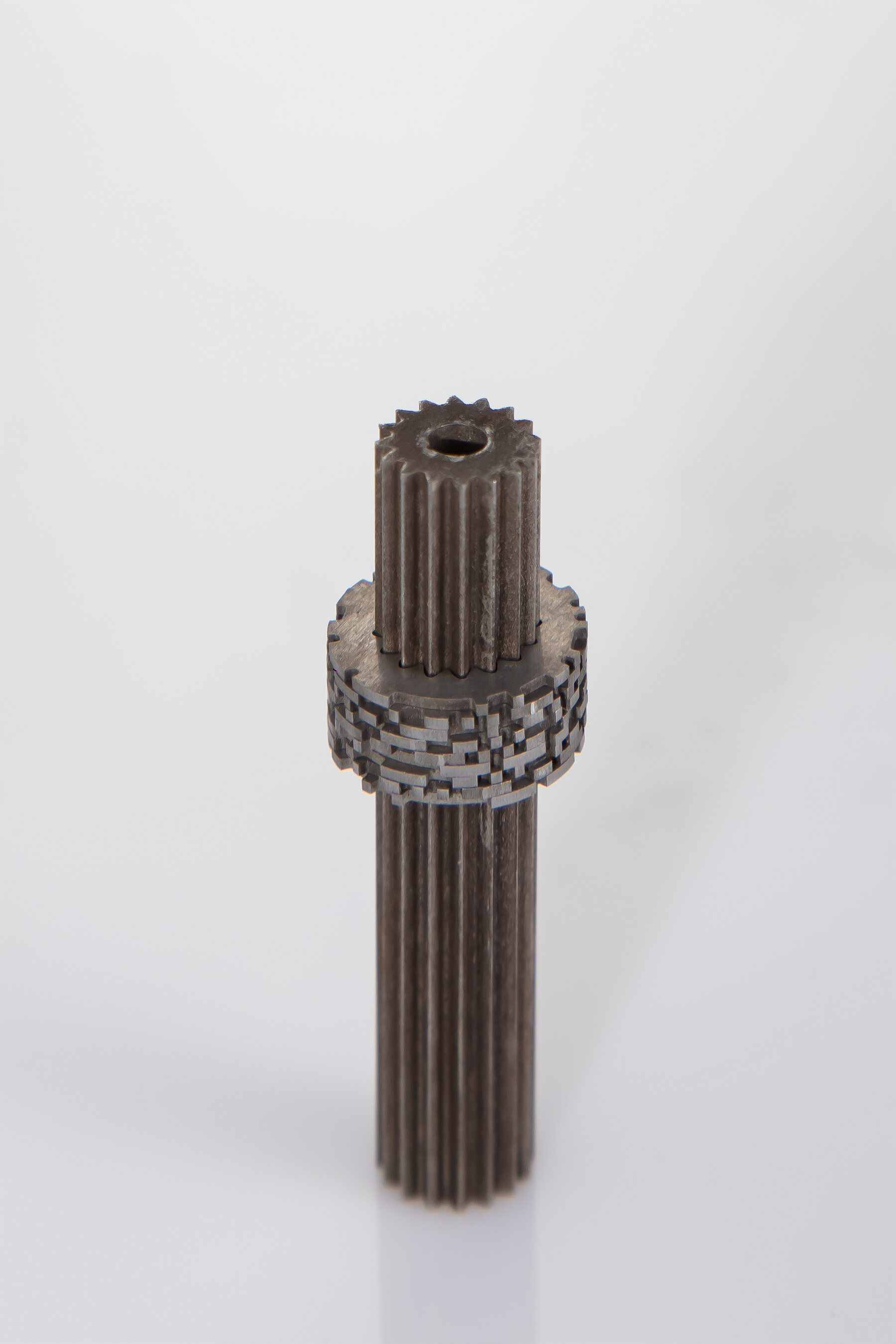

Steellet mechanical indexing structure

05 / PEOPLE

A small team.
A long-term object.

Steellet combines mechanical prototyping, security research, product direction, and manufacturing around one intentionally narrow purpose.

Meet the project ↗Incubated with the support and affection of MoneyLab.

06 / CUSTOM ORDER

Make it yours,
without sharing secrets.

Define finish, engraving, payment preference, and optional public QR. The brief is created locally and sends nothing.

Open order configurator +

NON-SENSITIVE ORDER BRIEF

STEELLET — ORDER BRIEF
Model: Current 16 × 16 / 256-bit architecture
Quantity: 1
Finish: Natural stainless steel
Engraving: None
Payment preference: Bitcoin
Unique public-identifier QR per part: No
Pricing, supported assets, delivery, and final mechanical options: to be confirmed.
This drafts the specification locally. It is not checkout and sends nothing until an order channel and final pricing are published.

07 / ESSENTIALS

Four useful answers.

Is Steellet an electronic hardware wallet?

No. It is a physical backup for wallet entropy and does not sign transactions.

Does the offline tool upload my seed?

No. Wait until it reports “cached,” disconnect every network, and only then use it with real recovery material.

Does the current object support 12 words?

The tool converts 12-word phrases, but the production physical map is currently defined for 24-word, 256-bit entropy.

Can the BIP39 seed be converted back to words?

No. The reversible value is entropy. The later 512-bit BIP39 seed cannot be reversed into the mnemonic.

STEELLET / PHYSICAL COLD STORAGE

Keep the root
outside the network.
